Description

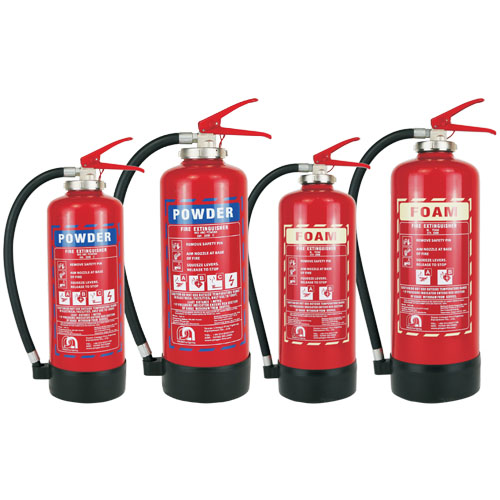

Cartridge Extinguisher Design Ⅱ
| Model |
PAPC-6 |
PAPC-9 |
PAFC-6 |
PAFC-9 |
| Agent |
40% ABC powder |
40% ABC powder |
Premix-3%AFFF |
Premix-3%AFFF |
| Propellant |
CO2 |
CO2 |
CO2 |
CO2 |
|
7.6L |
11.2L |
7.2L |
10.8L |
| Charged weight |
6kg |
9kg |
6L |
9L |
| Material |
ST12/14 |
ST12/14 |
ST12/14 |
ST12/14 |
| Valve |
M74*2 |
M74*2 |
M74*2 |
M74*2 |
| Fire rating |
27A 183B C |
43A 233B C |
13A 144B |
21A 183B |
| Range |
6~8m |
6~8m |
6~8m |
6~8m |
| Discharge time |
>16’S |
>17’S |
>26’S |
>38’S |
| Test pressure |
30Bar |
30Bar |
30Bar |
30Bar |
| Operating |
-20℃~60℃ |
-20℃~60℃ |
5℃~60℃ |
5℃~60℃ |
| Extinguisher weight |
11.2kg |
15.7kg |
11.4kg |
15.7kg |
| Cylinder size |
ø161mm x 432mm |
ø183mm x495mm |
ø161mm x 432mm |
ø183mm x495mm |
| Packing size |
180mm x180mm x575mm |
195mm x195mm x620mm |
180mm x180mm x575mm |
195mm x195mm x620mm |
